Gebosun® Smart Lighting PLC Solution for Street Light
PLC Solution

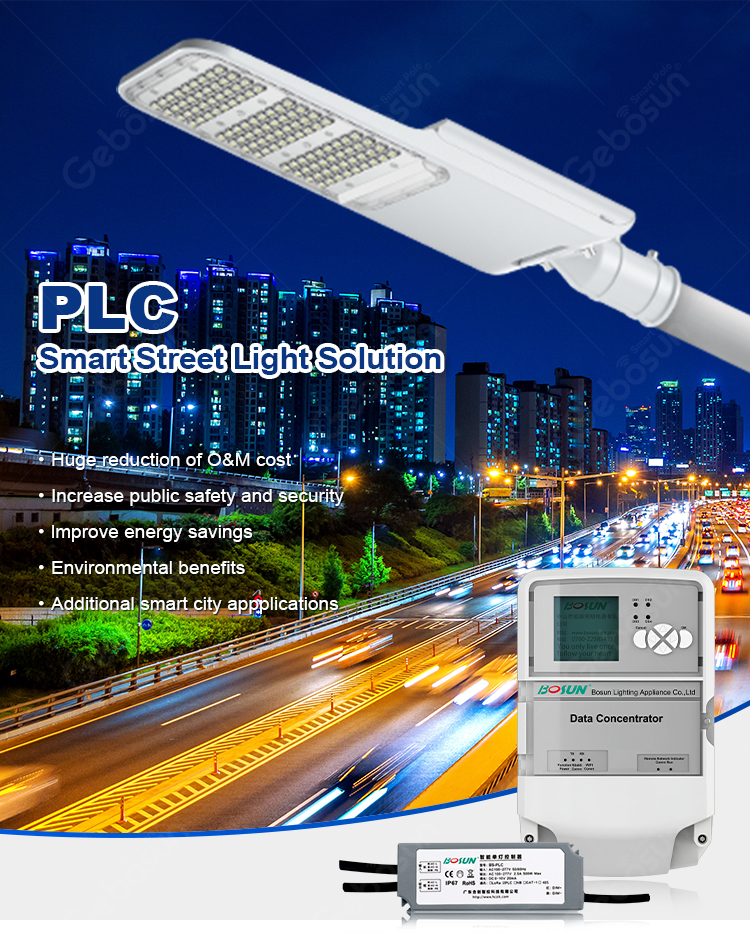

SCCS+Data Concentrator SL8200C+PLC812/PLC822/PLC816 Series
Power Line Communication

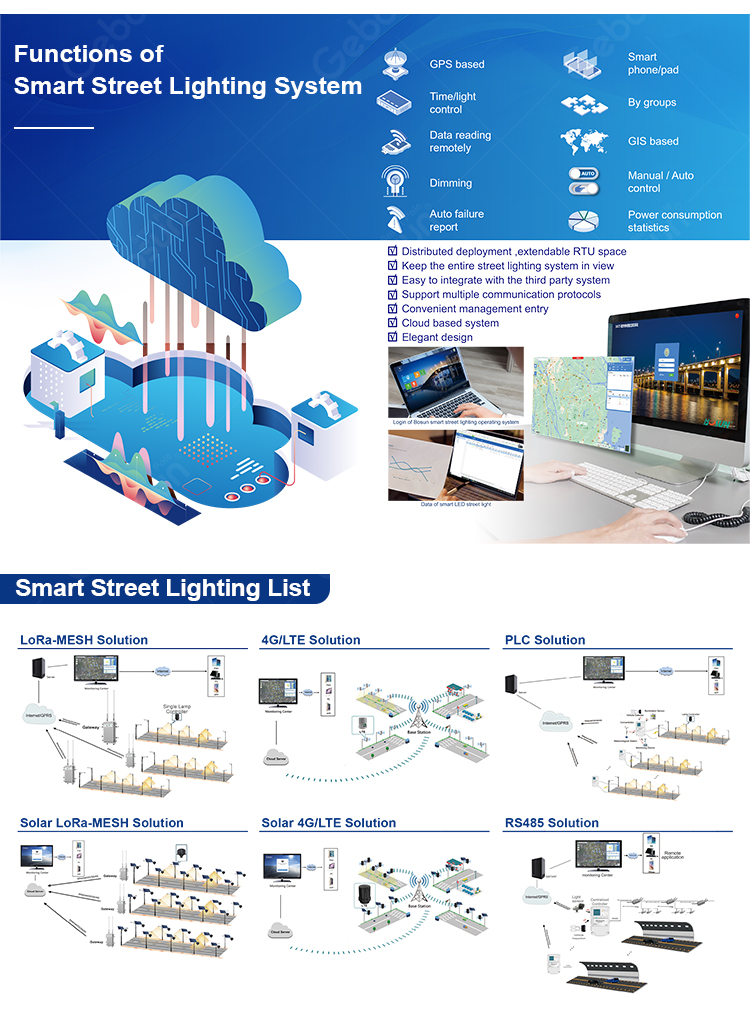

GIS Map lnterface, Multi-language Switch, Real-Time Control Display, Energy Consumption Statement Statistics, Fault Alarm Statistics, User Rights Management
NEMA Interface, GPS Position, Tilt Detection, Optical Control Function, Self-running Tasks
Holiday Mode, Sunrise and Sunset Mode, Multi-strategy Timing Control
Multi-loop Control, Multi-terminal Control, Support Broadcast Multicast, and Unicast Control

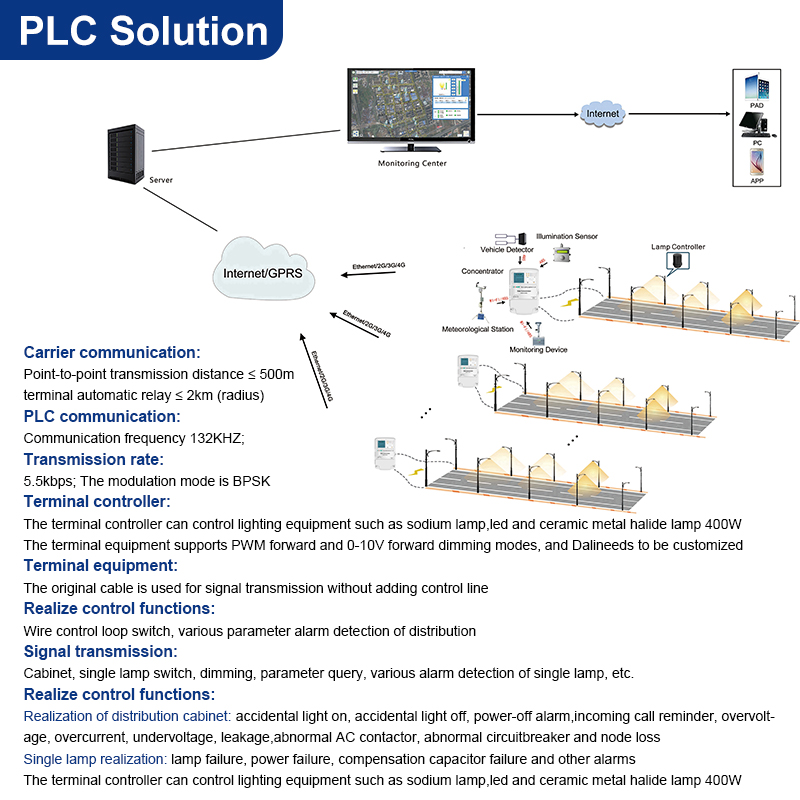

| Carrier communication | Point-to-point transmission distance ≤ 500m terminal automatic relay ≤ 2km (radius) |
| PLC communication | Communication frequency 132KHZ; Transmission rate: 5.5kbps; The modulation mode is BPSK |
| Terminal controller | The terminal controller can control lighting equipment such as sodium lamp,led and ceramic metal halide lamp 400W |
| Terminal equipment | The terminal equipment supports PWM forward and 0-10V forward dimming modes, and Dali needs to be customized |
| Signal transmission | The original cable is used for signal transmission without adding control line |
| Realize control functions | Realize control functions: wire control loop switch, various parameter alarm detection of distribution cabinet, single lamp switch, dimming, parameter query, various alarm detection of single lamp, etc. |
| Realize alarm function | Realization of distribution cabinet: accidental light on, accidental light off, power-off alarm, incoming call reminder, overvoltage, overcurrent, undervoltage, leakage,abnormal AC contactor, abnormal circuit breaker and node loss Single lamp realization: lamp failure, power failure, compensation capacitor failure and other alarms |
☑ Distributed deployment ,extendable RTU space
☑ Keep the entire street lighting system in view
☑ Easy to integrate with the third party system
☑ Support multiple communication protocols
☑ Convenient management entry
☑ Cloud based system
☑ Elegant design
Core Equipment

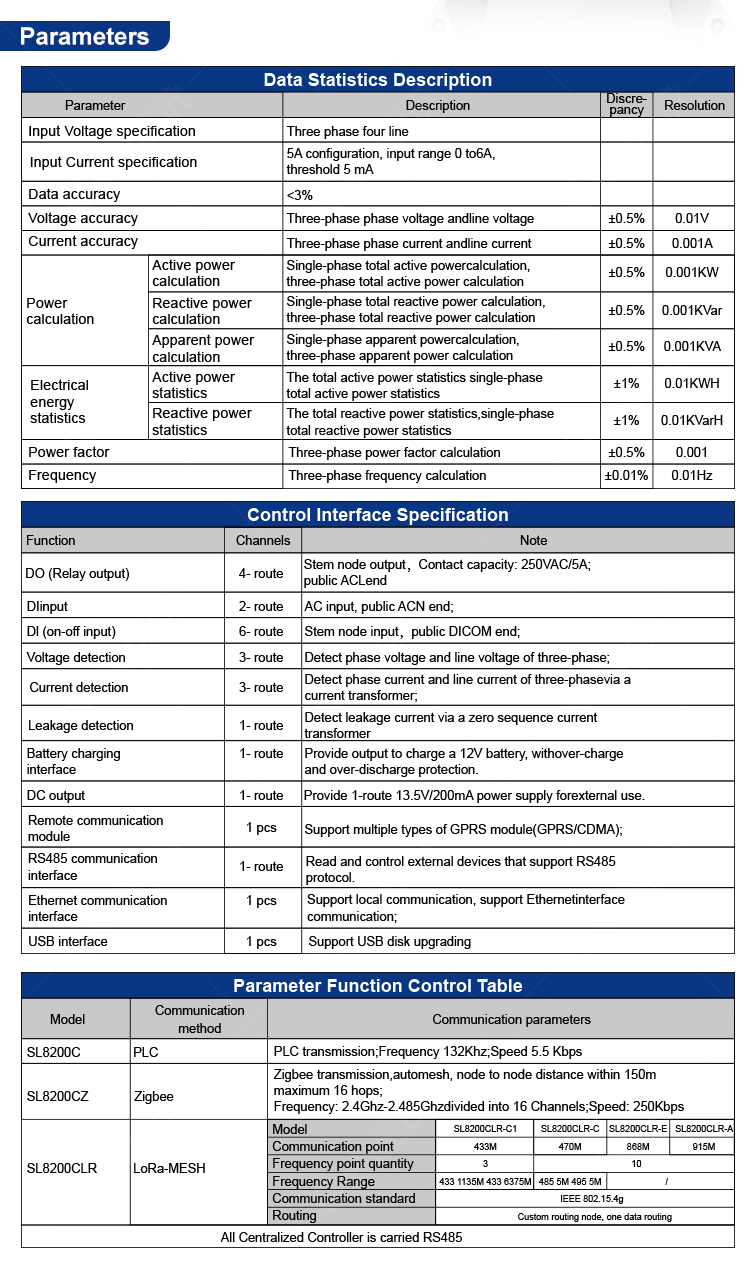

Centralized controller
Concentrator, a communication bridge between server(by 2G/4G/Ethernetand single controller(by PLC). Built-in LCD display and smart meter it supports 4 digital swich,update by OTA,100-500VAC,IP54
BS-SL82000C-Z/M
- LCD display.
- High-performance 32-bit ARM9 MCU
- Embedded Linux OS platform.
- With 10/100M Ethernet interface.RS485 interface USB interface.
- It supports GPRS/4G and Ethernet communication mode.
- Firmware upgrading:online, cable and local USB disk.
- Built-in smart meter: remotely data reading
(including external meter).
- Built-in PLC communication module
- Built-in RTC, support local scheduled task
- Built-in 4 DO.8 DI(6DCIN+2AC IN)
- Optional configuration: GPS
- Fully sealed enclosure: anti-interference, withstand high voltage,
lightning and high frequency signal interference

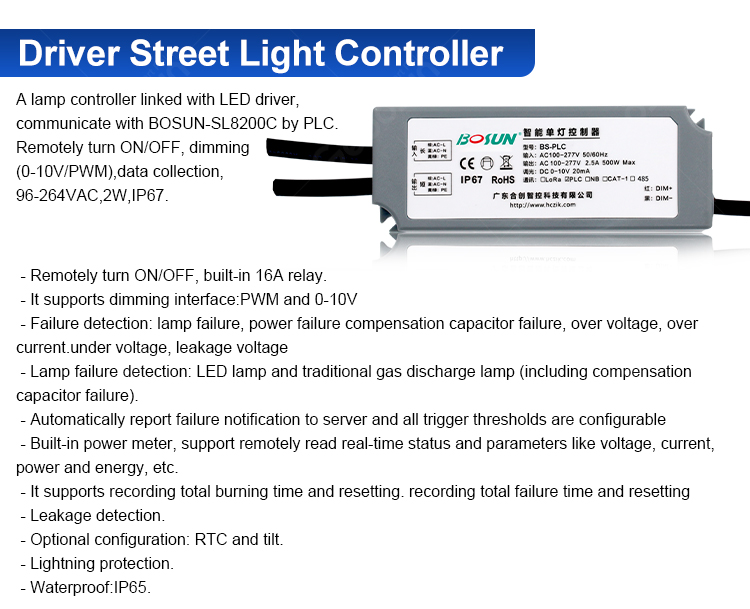

Single lamp controller
A lamp controller linked with LED driver, communicate with BOSUN-SL8200Cby PLC, 7 pin Nema interface. Remotely turn ON/OFF, dimming(0-10V/PWM).data collection, 96-264VAC,2W,IP65.
BS-816M
- PLC transmission.
- Standard NEMA 7-PIN interface, plug and play
- Remotely turn ON/OFF, built-in 16A relay.
- It supports dimming interface: PWM and 0-10V
- Failure detection: lamp failure, power failure, compensation capacitor failure, over voltage, over current, under voltage, leakage voltage.
- Lamp failure detection: LED and HID lamp (including compensation capacitor failure)
- Automatically report failure notification to server and all trigger thresholds are configurable
- Support remotely read real-time status and parameters like voltage, current, power and energy, etc
- It supports recording total burning time and resetting, recording total failure time and resetting.
- Optional configuration: RTC and tilt
- Lightning protection
- Waterproof:IP65
Dual lamp controller
A lamp controller linked with LED driver, communicate with BOSUN-SL8200C by PLC. Remotely turn ON/OFF, dimming(0-10V/PWM), data collection,96-264VAC,2W,IP67
BS-PLC822
- Remotely turn ON/OFF
- With double circuit dimming interface: PWM and 0-10V
- With LED lamp failure detection function.
- With compensation capacitor damage detection.
- With active fault information reporting functions
- Accumulated electric energy, accumulated lighting time accumulated failure time, and warning of lamp life (system stand by).
- Status query, dimming, electrical parameter collection function.
- Alarms such as overvoltage,undervoltage, and overcurrent (system support).
- Accumulated electric energy, accumulated lighting time accumulated failure time, and warning of lamp life
Single lamp controller
A lamp controller linked with LED driver, communicate withBOSUN-SL8200C by PLC.Remotely turn ON/OFF, dimming(0-10V/PWM),data collection,96-264VAC,2W,IP67.
BS-PLC812/PLC815
- Remotely turn ON/OFF, built-in 16A relay.
- It supports dimming interface:PWM and 0-10V
- Failure detection: lamp failure, power failure compensation capacitor failure, over voltage, over current.under voltage, leakage voltage
- Lamp failure detection: LED lamp and traditional gas discharge lamp (including compensation capacitor failure).
- Automatically report failure notification to server and all trigger thresholds are configurable
- Built-in power meter, support remotely read real-time status and parameters like voltage, current, power and energy, etc.
- It supports recording total burning time and resetting.recording total failure time and resetting
- Leakage detection.
- Optional configuration: RTC and tilt.
- Lightning protection.
- Waterproof:IP67.
1-10v Dimming Driver 100W/150W/200W
BS-Xi LP 100W/150W/200W
- Ultimate robustness, offering peace of mind and lower maintenance costs
- Long lifetime and high survival rate
- Energy savings through high efficiency
- Balanced configurable feature setcovering the most commonapplications
- Superior thermal management
- Consistent waterproof performance through the lifecycle
- Easy to design-in, configure and install for Class I applications
- SimpleSet®, wireless configuration interface
- High surge protection
- Long lifetime and robust protection against moisture,vibration and temperature
- Configurable operating windows(AOC)
- External control interface (1-10V) available
- Digital Configuration Interface (DCI) via MultiOne Interface
- Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer
- Programmable Constant Light Output (CLO)
- Integrated Driver Temperature protection
Transformation of old street lamps
With the development of society, the transformation of old street lamps has become one of the urban construction plans.
The solution in most countries is to keep the street light poles and transform the lighting fixtures; or replace them with LED lamps made of environmentally friendly materials.or use solar energy-friendly lamps and lanterns. But no matter how the lamps are modified, they will save a lot of energy than the previous halogen lamps.
As an important carrier of smart city, smart light pole can carry some other intelligent devices, such as CCTV camera, weather station, mini base station, wireless AP, public speaker, display, emergency call system, charging station, smart trash can, smart manhole cover, etc. It is easy to develop into a smart city.
With BOSUN SSLS (Solar Smart Lighting System) & SCCS(Smart City Control System) stable operating system，these devices can operate efficiently and stably. The street lamp renovation project can be successfully completed.
Project
PlC technology is to realize the connection of each lamp with the lnternet through informationand sensing equipment, so as to realize on-demand lighting and refined management of batchamps, so as to achieve the purpose of energy saving, emission reduction, efficient operation andmaintenance.
The advantages ofthe PLC are
1. Only rely on the existing power line to transmit signals, without separate wiring, low cost
2. Wired signal transmission, high reliability, high transmission rate and long transmissiondistance
3. Low operation and maintenance costs
A successful case have made in Thailand. He installed 376 sets of solar street lights in 3 parks, and realized remote control of so many lights at the same time.
He is very satisfied with our PLC technology, and told us that because of this technology, he saved a lot of manpower cost to inspect and maintain these devices, saving a lot of hidden costs.
He know where and which station lights have problems by computer, and can get timely repairs.
