Gebosun® RS485 Solution for Smart Street Light
RS Solution

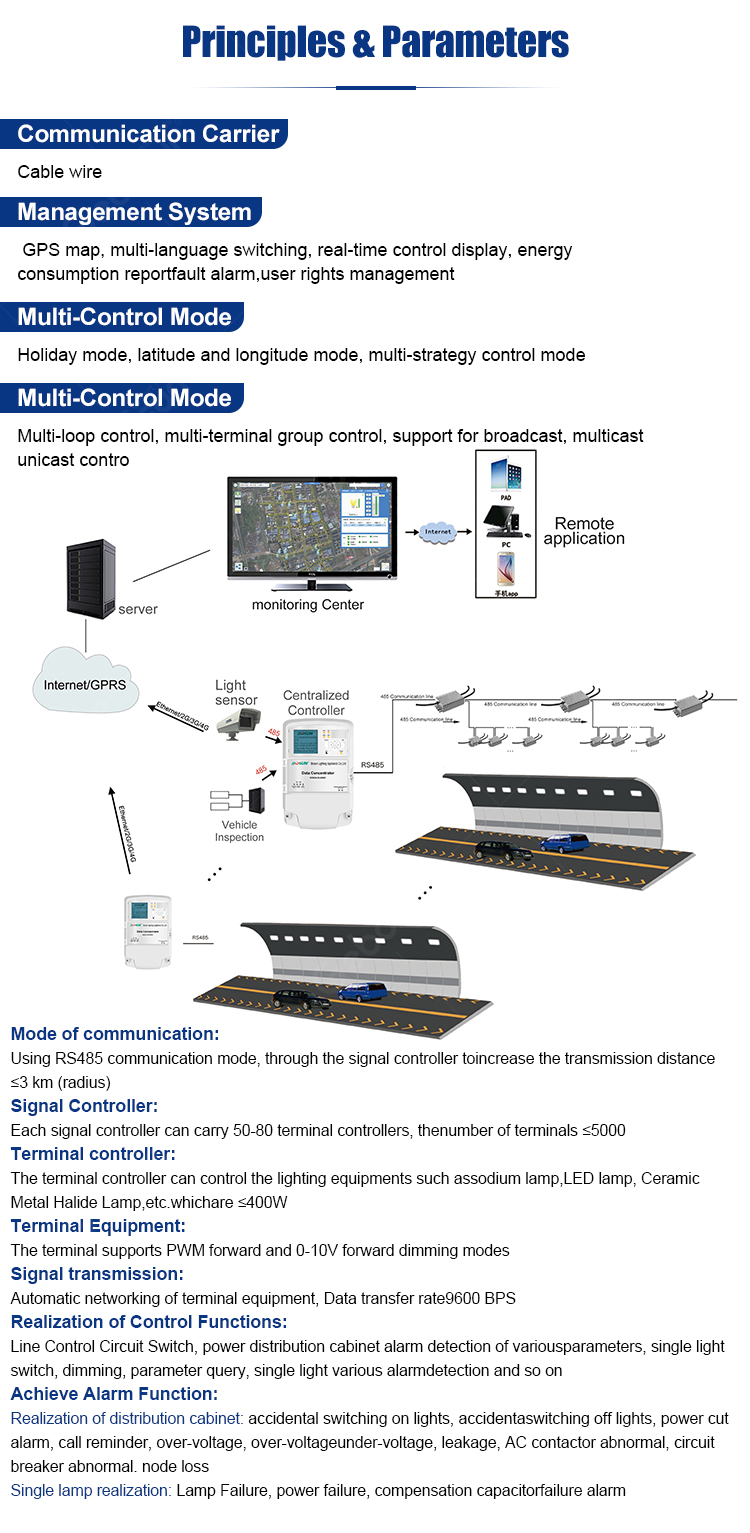

SCCS(Smart City Control System)+Centralized Concentrator
+Single Lamp Controller
Cable wire

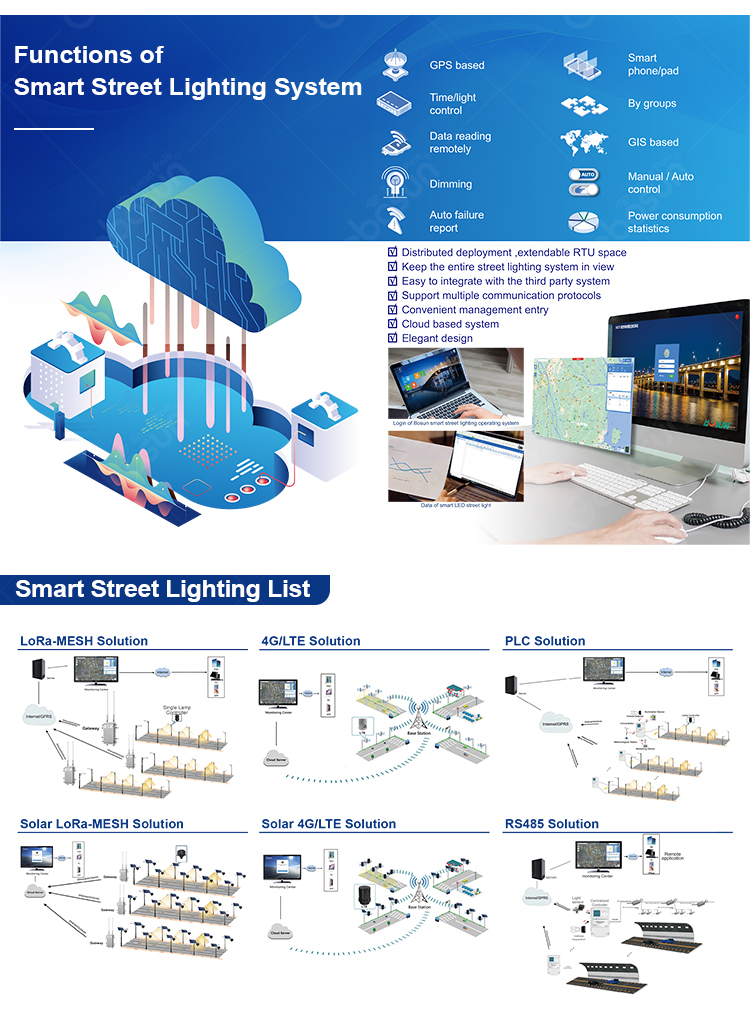

GS map, multi-language switching, real-time control display, energy consumption reportfault alarm,user rights management
Holiday mode, latitude and longitude mode, multi-strategy control mode
Multi-loop control, multi-terminal group control, support for broadcast, multicast unicast contro
Mode of communication Using RS485 communication mode, through the signal controller toincrease the transmission distance ≤3 km (radius)
Signal Controller Each signal controller can carry 50-80 terminal controllers, thenumber of terminals ≤5000
Terminal controller The terminal controller can control the lighting equipments such assodium lamp,LED lamp, Ceramic Metal Halide Lamp, etc.whichare ≤400W
Terminal Equipment The terminal supports PWM forward and 0-10V forward dimmingmodes Signal transmission Automatic networking of terminal equipment, Data transfer rate9600 BPS
Realization of Control Functions Line Control Circuit Switch, power distribution cabinet alarm detection of variousparameters, single light switch, dimming, parameter query, single light various alarmdetection and so on
Achieve Alarm Function Realization of distribution cabinet: accidental switching on lights, accidentaswitching off lights, power cut alarm, call reminder, over-voltage, over-voltageunder-voltage, leakage, AC contactor abnormal, circuit breaker abnormal. node loss Single lamp realization: Lamp Failure, power failure, compensation capacitorfailure alarm
Core Equipment

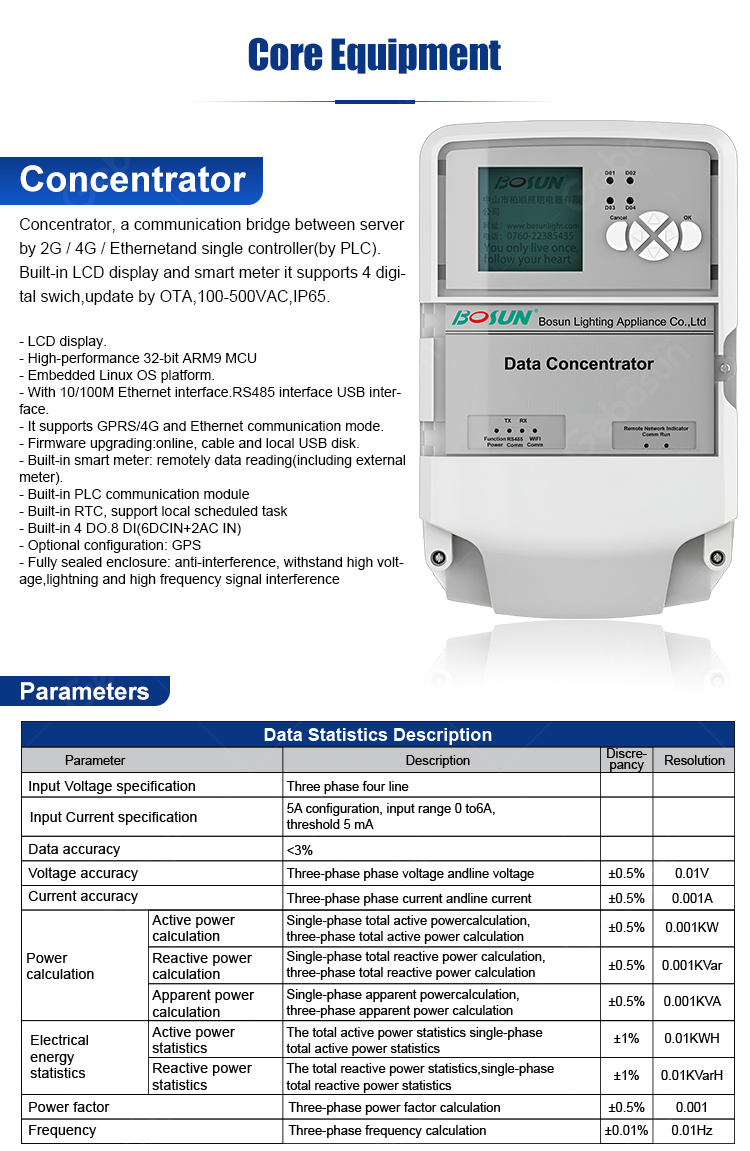

Centralized controller
A communication bridge between server(2G/4G/Ethernet) and(RS485).Built-in LCD display and smart meter, support 4 digital switch,update by OTA, 96-500VAC,0.3W,IP54
BS-SL82000CT
- LCD display.
- High-performance 32-bit industrial-grade based onARM9 CPU as
the micro-controller
- Using high reliable platform for the application as anembedded
Linux operating system.
- Attached with 10/100 m Ethernet interface,RS485interface,USB
interface, etc.
- Support GPRS(2G) communication mode, Ethernetremote
communication methods and can be extendedto 4G full network
communication.
- Upgrading local/remotely: serial port/USB disk,internet/GPRS
- Built-in smart meters to realize remote electric energymeter
reading, at the same time, support remote electricitymeter
reading for external meter.
- Built-in high-performance RS485 communication module.to
achieve intelligent tunnel lighting control.

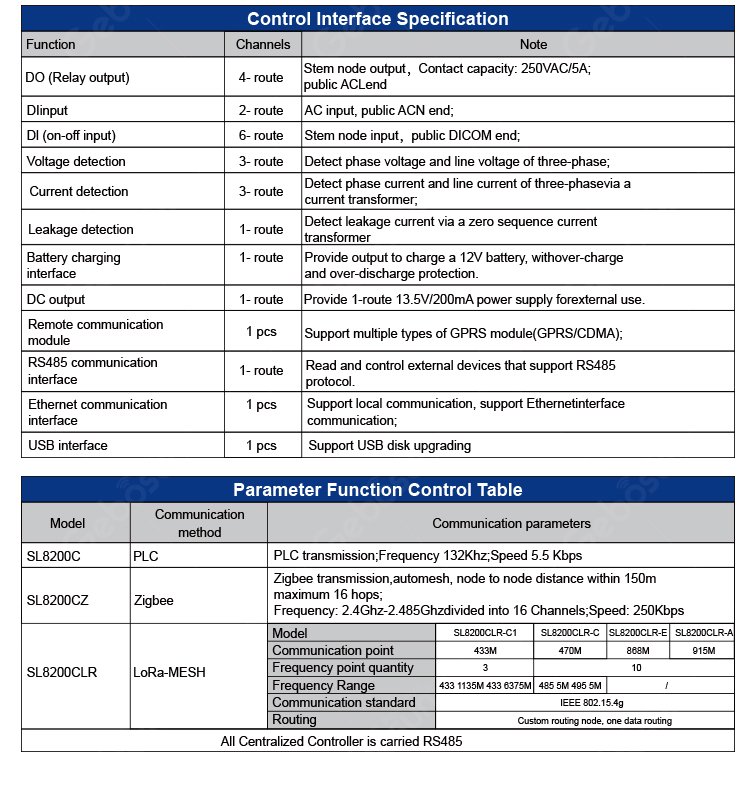

- 4DO,6DI(4 Switch IN+2AC IN).
- Fully sealed enclosure, strong anti-interference abilitywithstand
high voltage, lightning, and high frequencysignal interference.

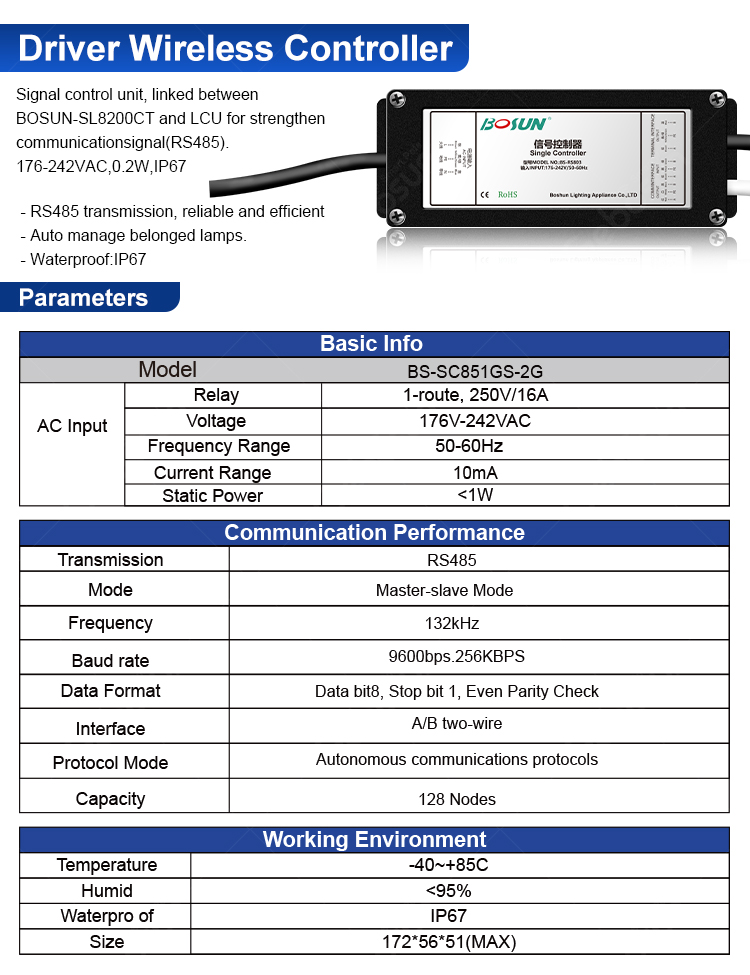

Single controller
Signal control unit, linked between BOSUN-SL8200CT and LCU for strengthen communication signal(RS485).176-242VAC,0.2W,IP67
BS-RS803
- RS485 transmission, reliable and efficient
- Auto manage belonged lamps.
- Waterproof:IP67

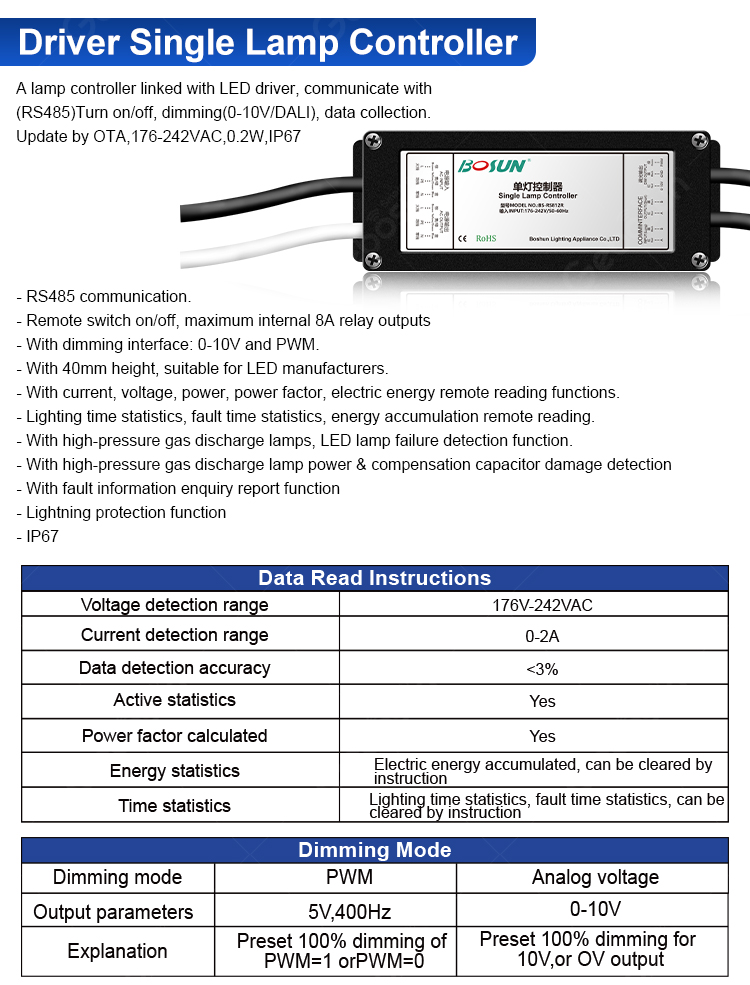

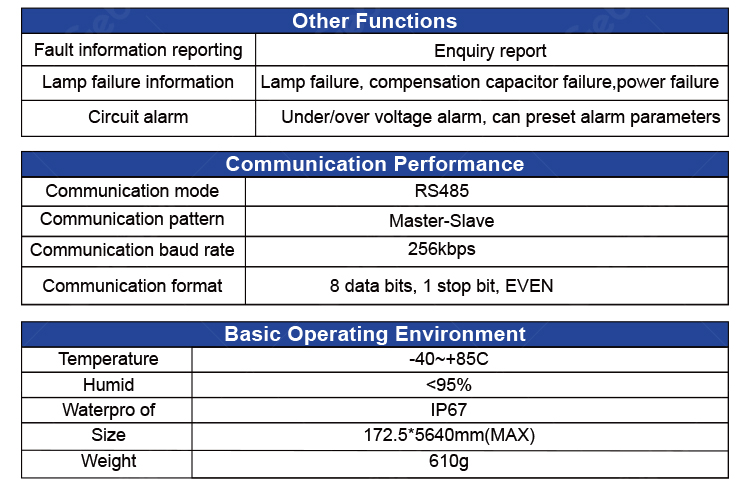

Single lamp controller
A lamp controller linked with LED driver, communicate with (RS485)Turn on/off, dimming(0-10V/DALI), data collection. Update by OTA,176-242VAC,0.2W,IP67
BS-RS812R
- RS485 communication.
- Remote switch on/off, maximum internal 8A relay outputs
- With dimming interface: 0-10V and PWM.
- With 40mm height, suitable for LED manufacturers.
- With current, voltage, power, power factor, electric energy remote
reading functions.
- Lighting time statistics, fault time statistics, energy accumulation
remote reading.
- With high-pressure gas discharge lamps, LED lamp failure
detection function.
- With high-pressure gas discharge lamp power & compensation
capacitor damage detection
- With fault information enquiry report function
- Lightning protection function
- IP67
1-10v Dimming Driver 100W/150W/200W
BS-Xi LP 100W/150W/200W
- Ultimate robustness, offering peace of mind and lower
maintenance costs
- Long lifetime and high survival rate
- Energy savings through high efficiency
- Balanced configurable feature setcovering the most common
applications
- Superior thermal management
- Consistent waterproof performance through the lifecycle
- Easy to design-in, configure and install for Class I applications
- SimpleSet®, wireless configuration interface
- High surge protection
- Long lifetime and robust protection against moisture,vibration
and temperature
- Configurable operating windows(AOC)
- External control interface (1-10V) available
- Digital Configuration Interface (DCI) via MultiOne Interface
- Autonomous or Fixed time based (FTBD) dimming via integrated
5-step DynaDimmer
- Programmable Constant Light Output (CLO)
- Integrated Driver Temperature protection
Transformation of old street lamps
With the development of society, the transformation of old street lamps has become one of the urban construction plans.
The solution in most countries is to keep the street light poles and transform the lighting fixtures; or replace them with LED lamps made of environmentally friendly materials.or use solar energy-friendly lamps and lanterns. But no matter how the lamps are modified, they will save a lot of energy than the previous halogen lamps.
As an important carrier of smart city, smart light pole can carry some other intelligent devices, such as CCTV camera, weather station, mini base station, wireless AP, public speaker, display, emergency call system, charging station, smart trash can, smart manhole cover, etc. It is easy to develop into a smart city.
With BOSUN SSLS (Solar Smart Lighting System) & SCCS(Smart City Control System) stable operating system，these devices can operate efficiently and stably. The street lamp renovation project can be successfully completed.

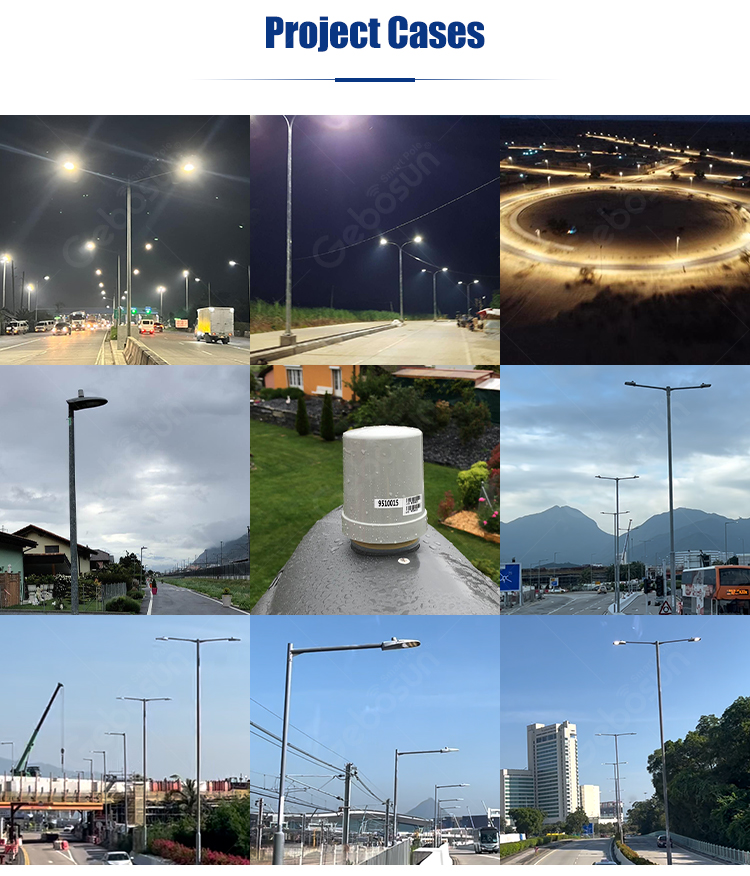

Project
Project:15th March ,2021
RS485 Smart Lighting Solution
Government Project In Chile country
Product Item: BOSUN BJX Series Street Light 200W,
RS485 Solution, Center controller and Lamp controller
Quantity: 120pcs
In March 15th, 2021, a RS485 solution smart lighting government project had been done in Chile,our clients can’t wait to share us some pictures or video of the goods when they received the models.
After all the lights are installed, we received nice feedback lighting performance pictures from our clients. They like the performance of the lights very much and they told us that our controlling system is stable. We are so happy to hear it. Until now, we have many projects undergoing with this good kindness client for long term business. We will help our clients business become bigger and bigger,further and further.
